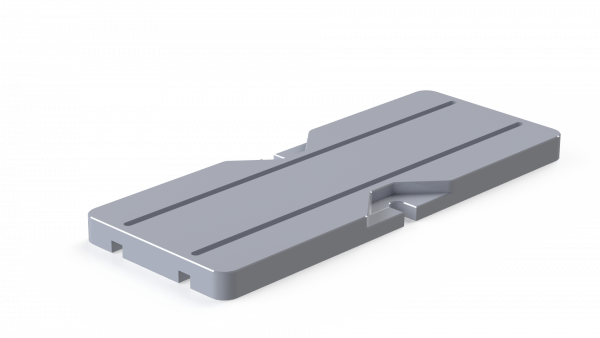

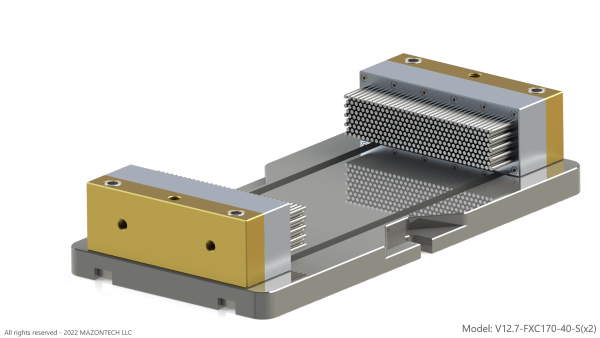

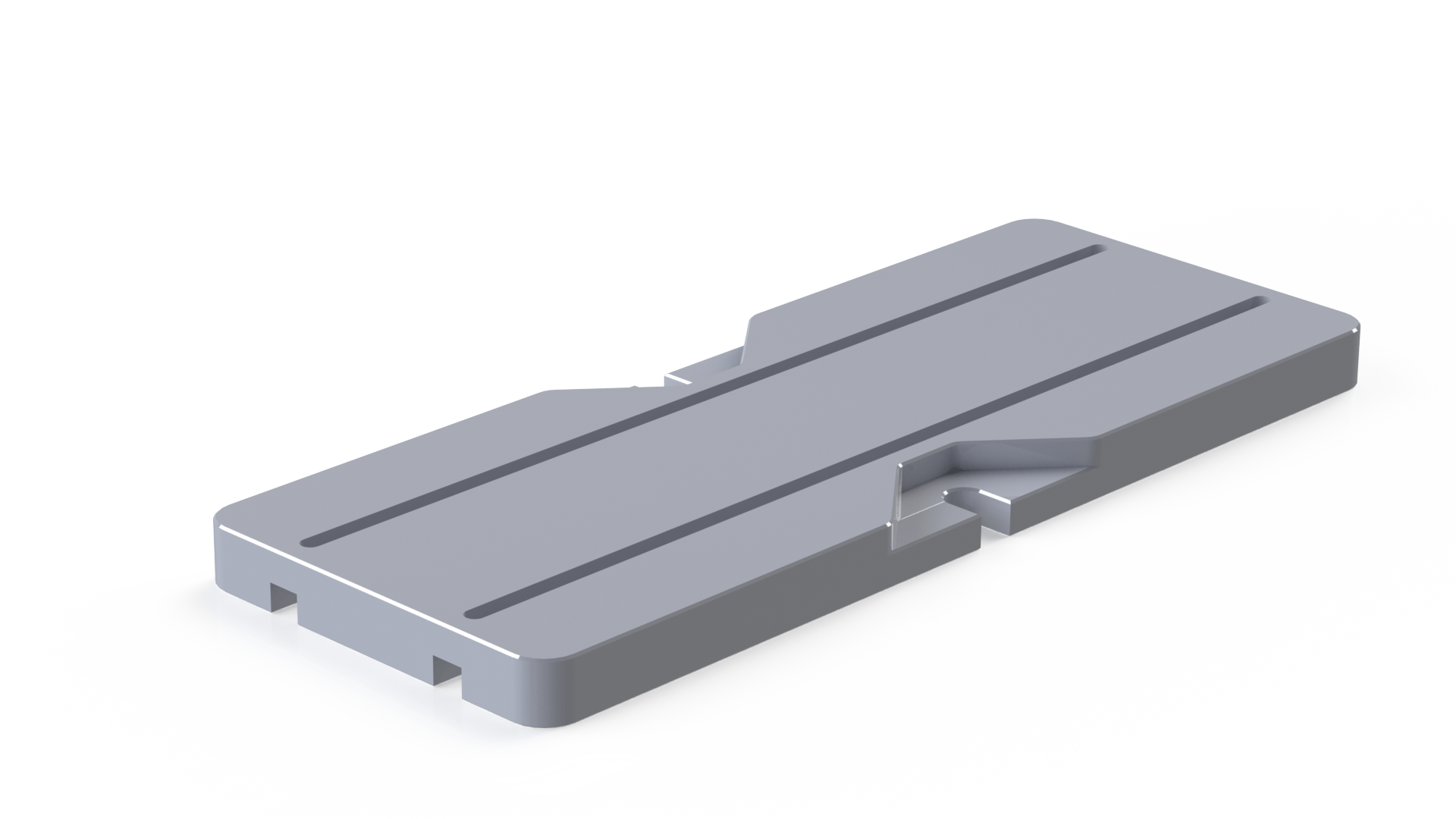

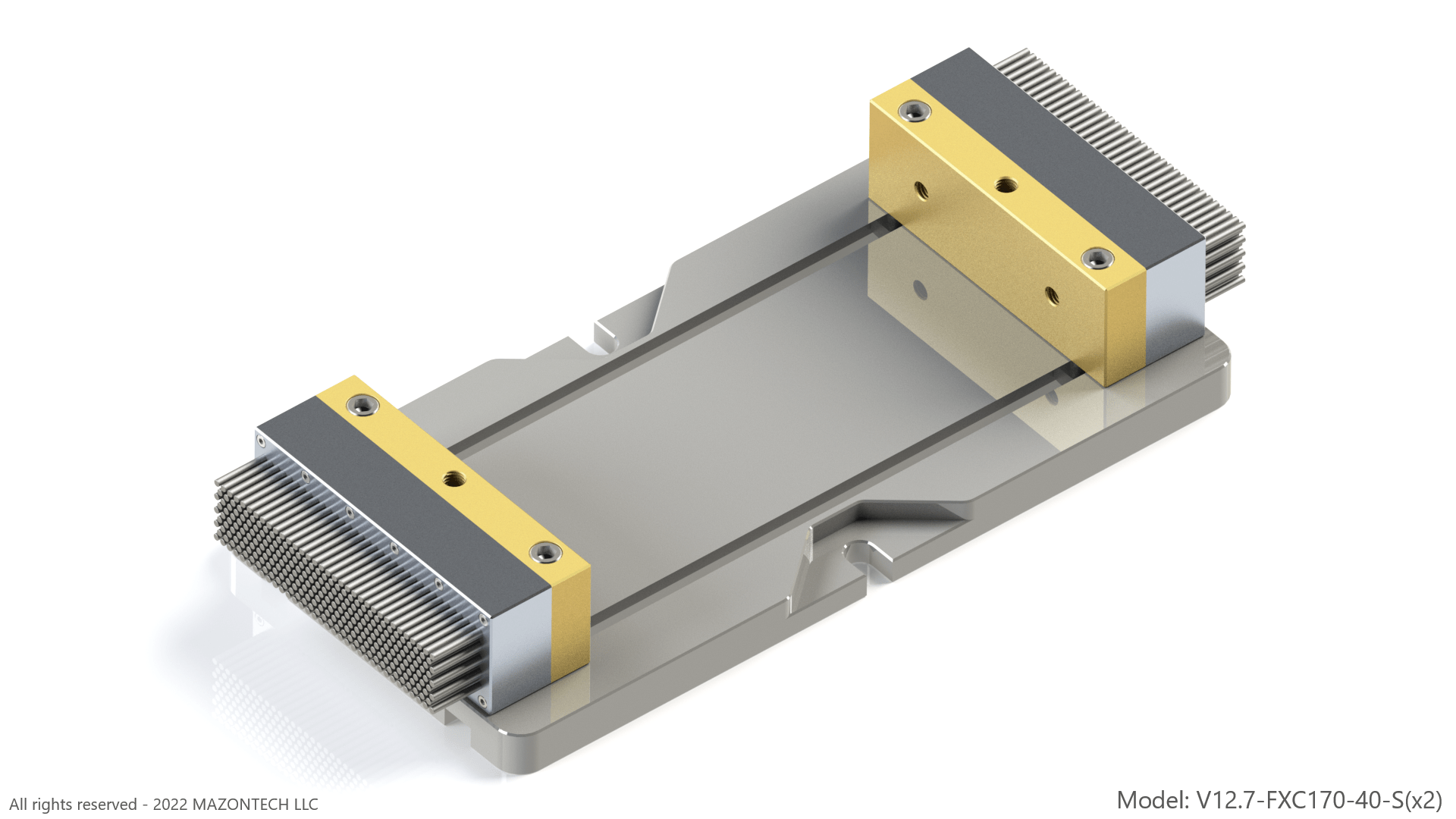

We offer the FlexClamp™ technology installed on a vise structure that we can provide based on your size requirements. Designed with a simple, yet strong and flexible concept; will allow you to adjust the aperture between each FlexClamp asymmetrically, i.e. independently adjustable. Also, can be used to clamp objects in-between (inwards) as well as directed outwards, e.g. to grip tubular shapes from their inside surfaces.
The vise system can be mounted on a T-slot machine table, grid plates, subplates, tombstone, custom made structures, and in combination with locating pins, guide pins or dowel pins and other accessories.
FlexClamp™ with its Patent Pending design made of multiple pins that adjust virtually to any object and format will adapt to the shape of the contour of objects to be fixed, obtaining a precise, rapid, and free of distortion clamping with a perfect fit each time. The system is powered by hydraulic pump or pneumatic line, allowing to obtain an elevated clamping force, or smooth and delicate in case of use on fragile objects, alike. By utilizing a pressure regulator, it is possible to obtain a fine adjustment applicable to all sorts of materials and shapes.

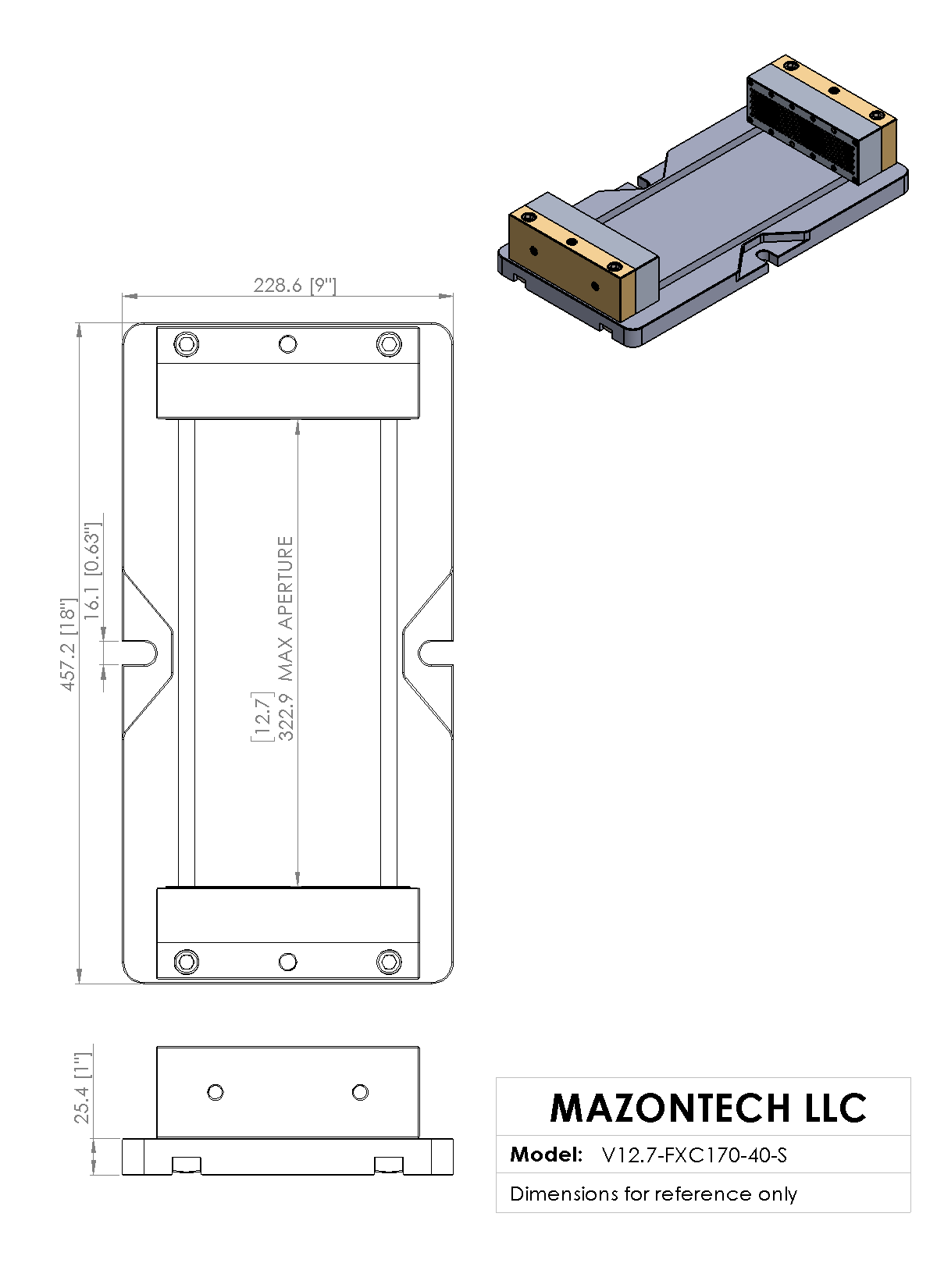

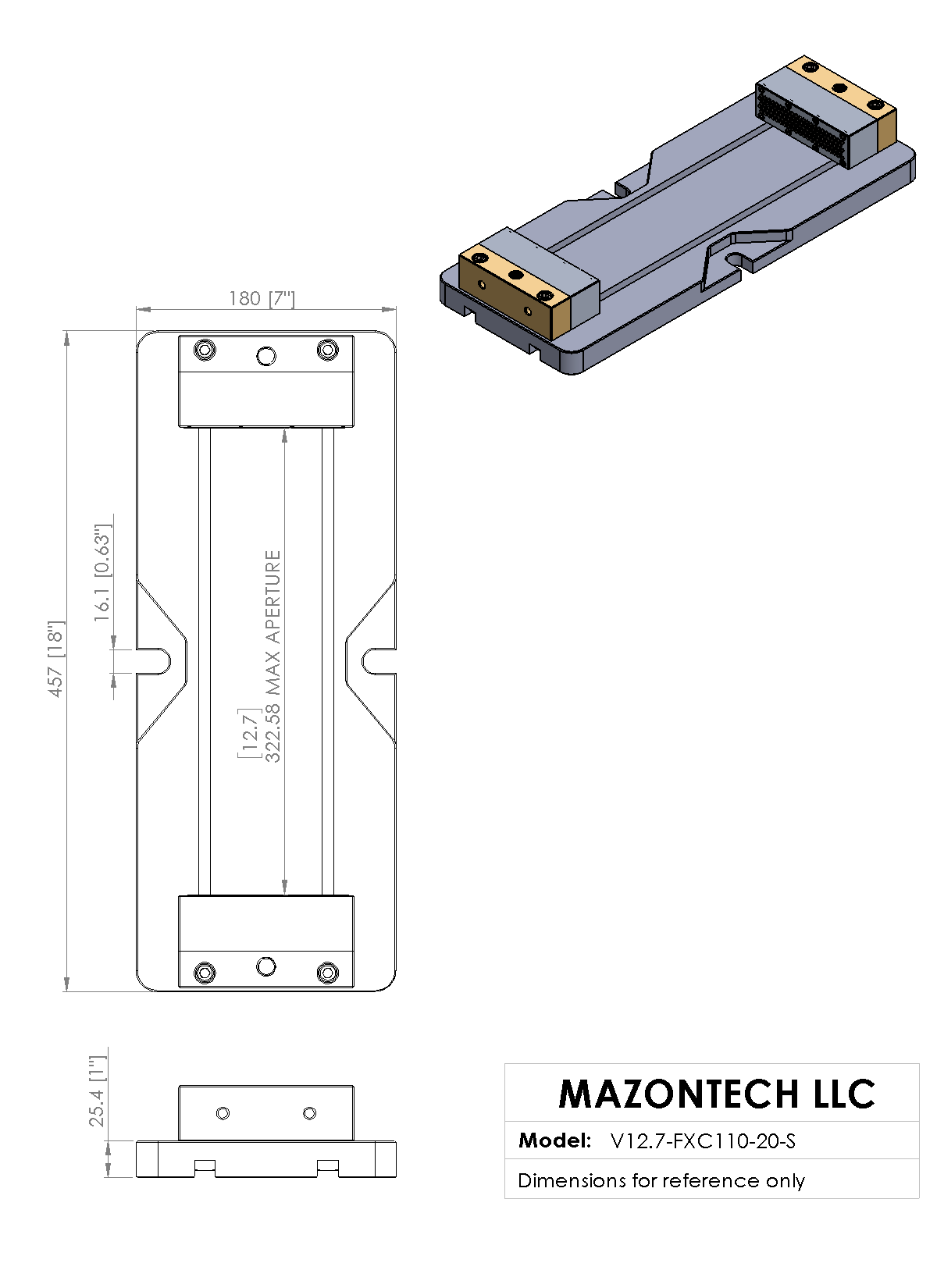

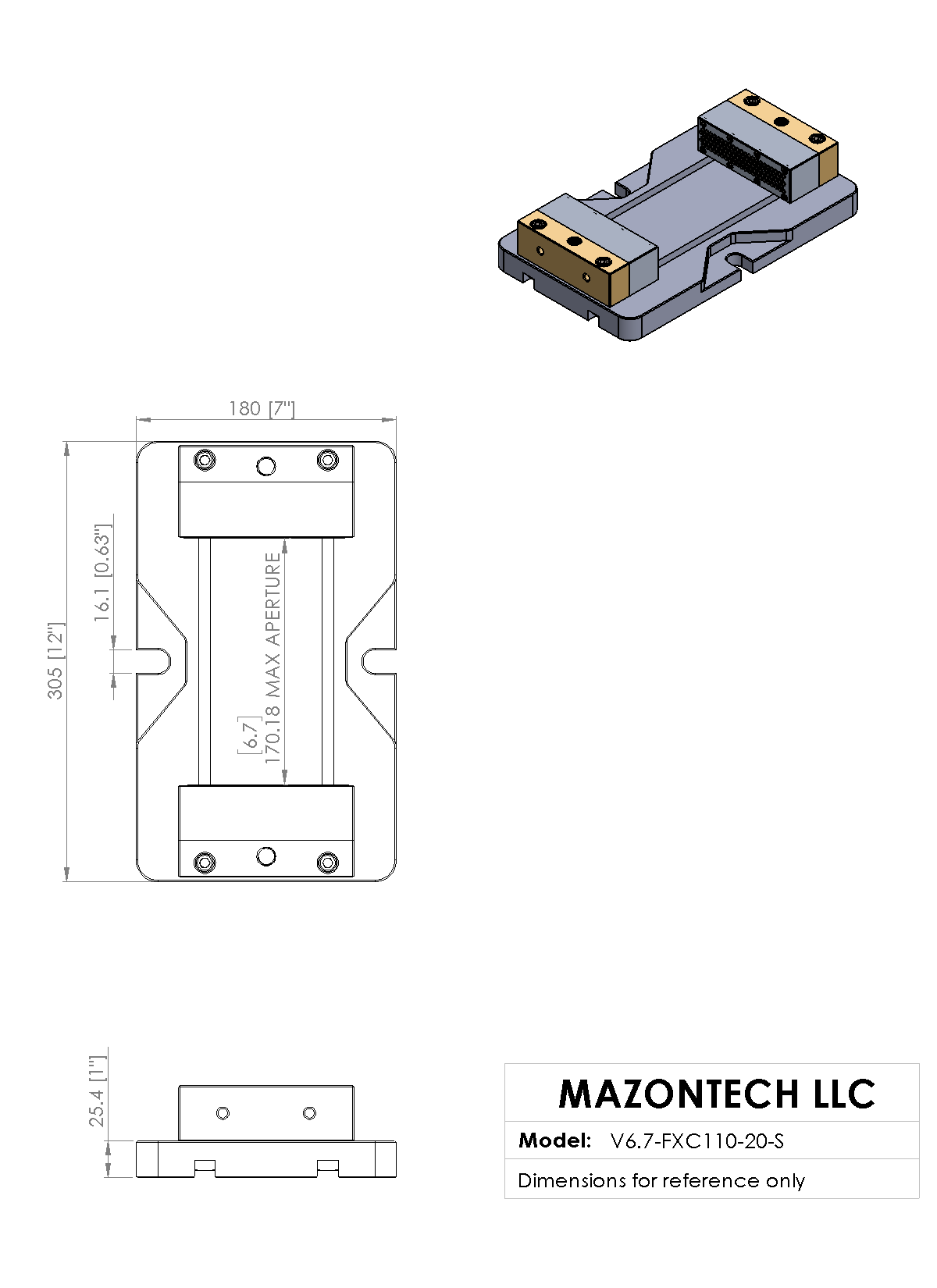

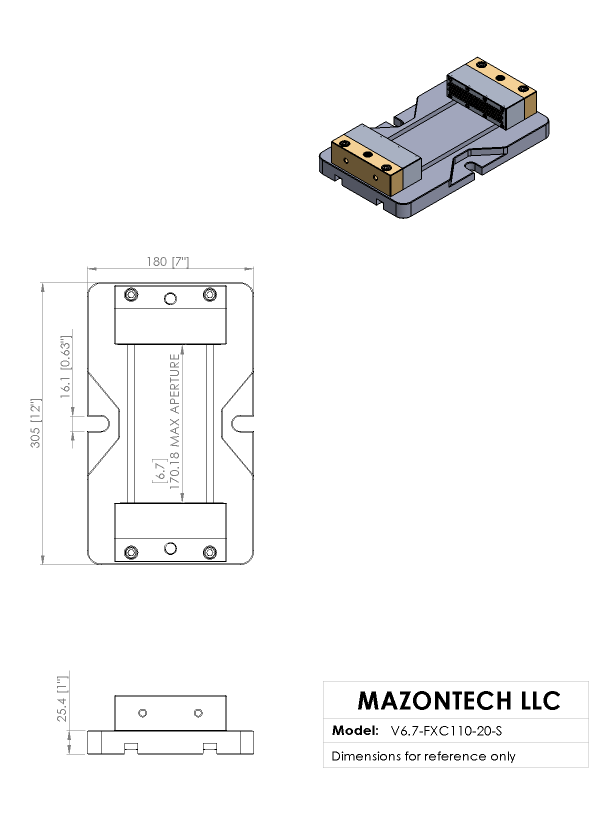

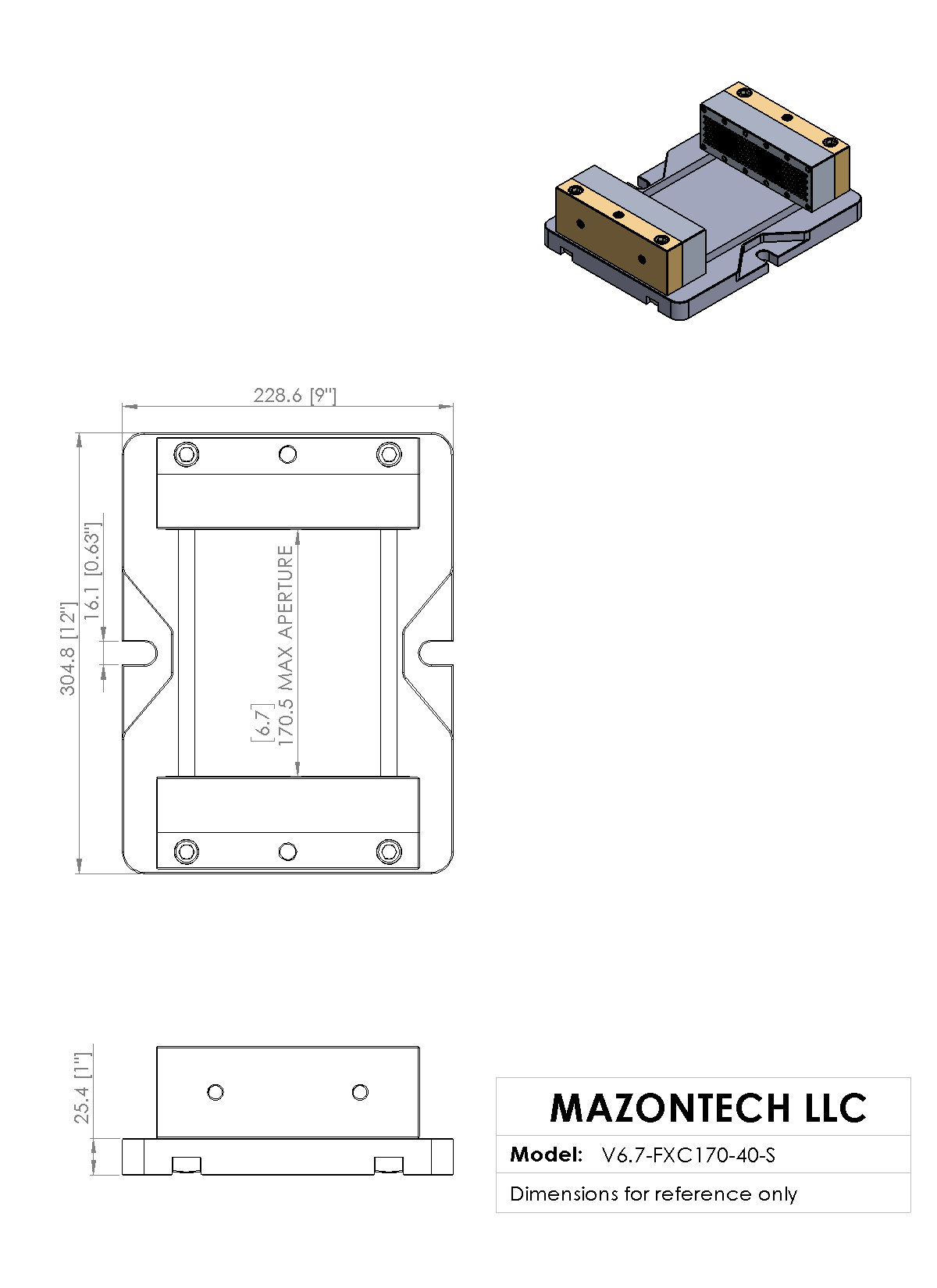

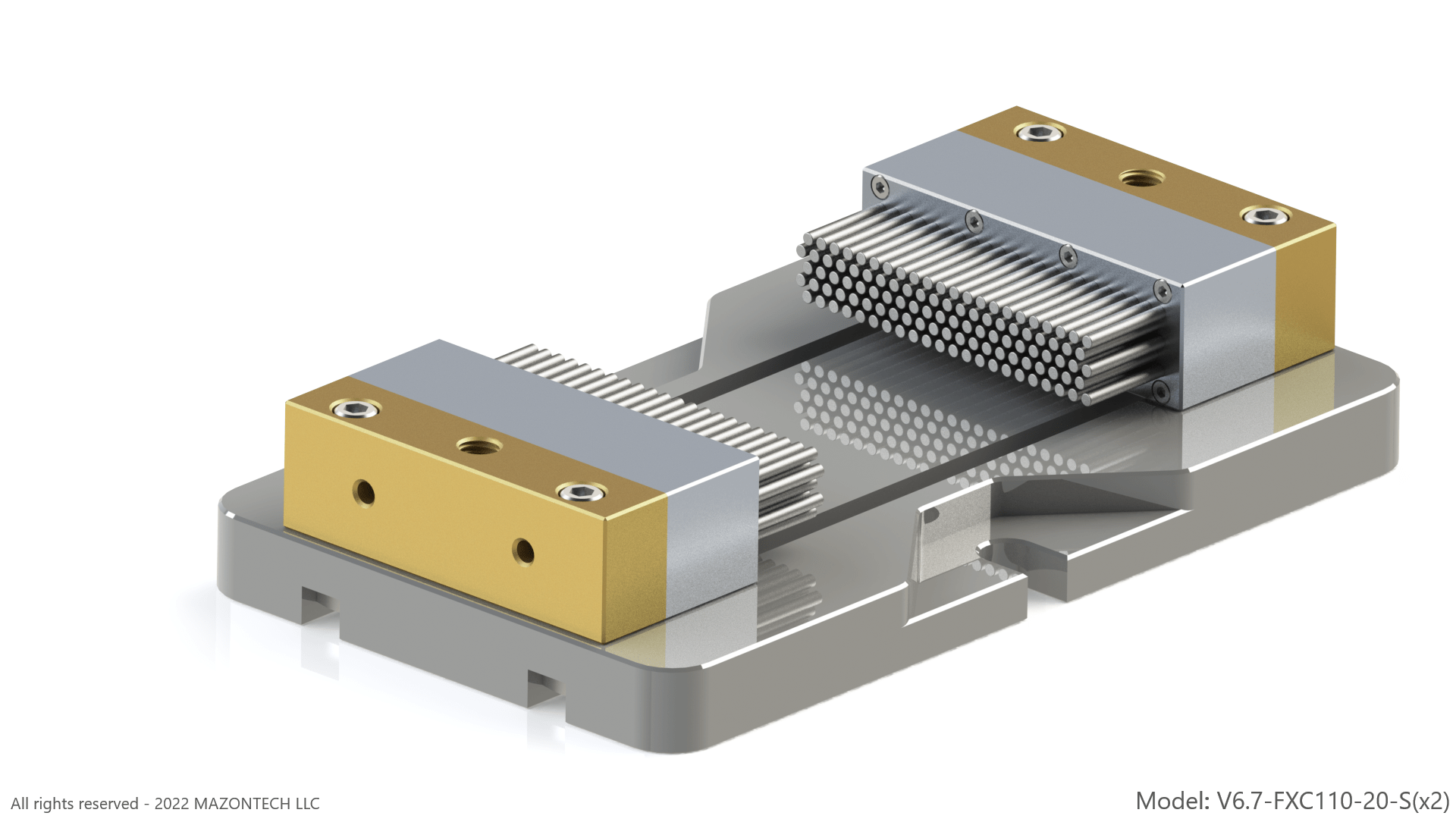

Any of our models FXC170-40 or FXC110-20, and in any of their feature options (Standard, Cleanroom, Food & Beverage, ESD safe) or special customized ones can be installed to the FlexClamp™ Vise Systems design. For model FXC28-11 see Adjustable Grippers FXC28-11.
Customized:
In case you have a particular application that requires to modify the devices or accessories, please don’t hesitate to get in contact with us by sending an email to sales@flexclamp.us or with the button MAKE AN ENQUIRY describing your application case. Our engineers will shortly answer and start working together with you towards finding the best solution. Some examples of customizations could involve: material selection, coatings, sealing material, dimensions and shapes, mounting accessories, etc.
Please send as many specifications and detailed description as possible, including sketches, working conditions, environmental conditions, material compatibility, dimensional limitations and any other constrain.
Our clamping device has a unique design that confers flexibility, robustness and precision. Thanks to FlexClamp™ you will be able to reduce the massive amounts of accessories, such us: clamps, fixtures, jigs, jaws, etc. that need to be selected and/or designed and manufactured for each particular project or application.
Your setup can operate in multiple directions and options, can be mounted on your machine table, vise, robots or on any of your devices. You can even make simultaneous clamping with multiple FlexClamp™ by arranging a centralized actuating system, feeding a series of FlexClamp devices, where these could be clamping many parts or multiple orientations and surfaces of one bigger component.
FlexClamp is constructed of heavy duty materials to give efficient operation in systems using petroleum base fluid in hydraulic systems or lubricated and filtered compressed air. Optional seal materials are available for operation with other fluids and/or environments.
The FlexClamp with “Standard” feature option has a temperature working range of -30° to +120°C (-22°F to 248°F). In case your application is subject to temperatures out of this range or you selected other FlexClamp feature option contact our engineers to sales@flexclamp.us. Temperatures closer to the limit of the range will affect the working life. Low temperatures could increase leaks, while higher temperatures could increase material fatigue and seals friction. Other environmental conditions could also affect the device. Please contact us.
IMPORTANT: note that the aforementioned temperature range is only indicated for the FlexClamp not considering the effect of the temperature to other components or power fluid used.
IMPORTANT NOTE: All specs, dimensions and colors are subject to change without notice or may differ depending upon export destinations and manufactured year. MAZONTECH LLC is not responsible for any inaccuracies contained herein. Please consult our sales representative or MAZONTECH LLC regional offices before designing or purchasing any product.
